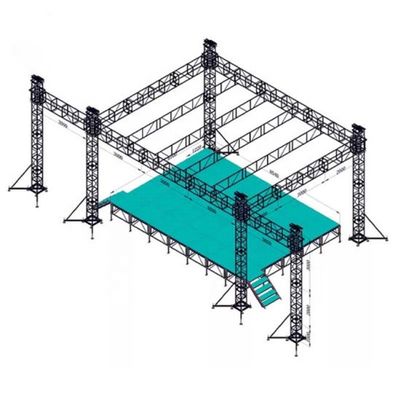

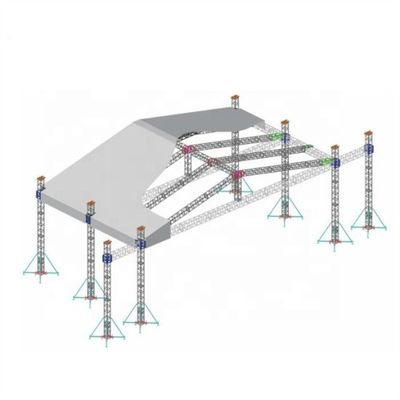

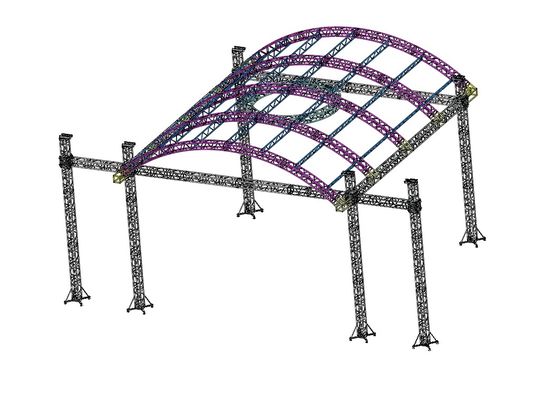

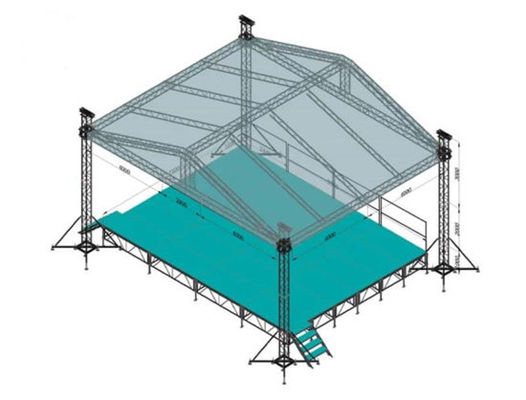

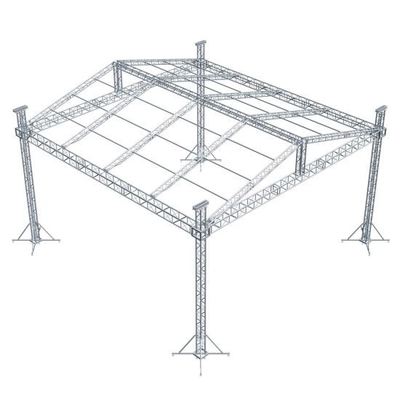

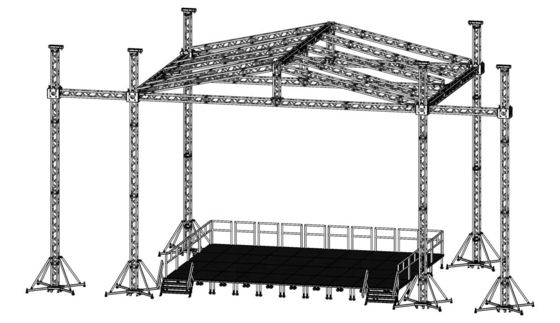

Aluminum Spigot Truss for Stage Events 500kg Load Capacity
| Luogo di origine | Jiangsu, Cina |
|---|---|
| Marca | Shizhan |
| Numero di modello | Truss-Rt in alluminio |
| Quantità di ordine minimo | 100 |
| Prezzo | $44-46 |
Contattimi gratis campioni e buoni.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Tipo di connessione | Collegamento di PIN | Materiale | Lega di alluminio 6082-T6 |
|---|---|---|---|
| Capacità portante | 500 kg | Lunghezza dell'unità | 0.5m, 1m, 2m, 3m, 4m, 5m o su misura |
| Forma di capriata | Quadrato, rotondo, triangolo, rettangolo o personalizzato | Forma della sezione della trave | Quadrato o Rotondo |
| Spessore del tubo di capriata | 1,5/2/3mm | Diametro del tubo di capriata | 20 mm, 32 mm, 50 mm |
| Durezza | 16 gradi | Dimensione del dovere leggero | 200*200 mm; 250*250 mm |
| Dimensione media | 290*290mm, 300*300mm; 350*350mm, 300*400mm, 400*400mm, 450*450mm, 400*600mm | Dimensione pesante | 520*760mm; 600*760mm; 600*1000mm |
| Spessore del tubo principale | 30*2 mm; 50*3mm; 50*4mm; 50*5mm | Spessore del vice tubo | 18*2 mm; 20*2,5 mm; 25*2,5 mm |
| Spessore del tubo del tubo | 20*2mm; 25*2mm; 30*2mm | ||
| Evidenziare | aluminum spigot truss 500kg capacity,stage event truss aluminum spigot,aluminum lighting truss heavy duty |
||
Descrizione di prodotto
Aluminum Spigot Stage Event Truss
Product Specifications
| Connection Type | Pin Connection |
| Feature | Quick installation |
| Shape | Rectangle, square, Triangle, round or customized |
| Frame design | Square |
| Product Type | Display Truss |
| Application | Exhibitions, Concert, Music, Performance, DJ Band, Event, Exhibition |
| Material | Aluminium, aluminum alloy |
| Welding | Welding |
| Load-bearing Capacity | 500kg |
| Assembly Method | Quick installation |
| Structure Type | Modular Structure |
| Unit length | 0.5m,1m,2m,3m,4m,5m or customized |
| Color | Silver, black or customized |
| Truss section shape | Square or round |
| Truss tube thickness | 1.5/2/3MM |
| Truss tube diameter | 20mm,32mm,50mm |
| Hardness | 16 degree |
Technical Details
| Truss Material | Aluminum alloy 6082-T6 |
| Light duty truss | 200*200mm; 250*250mm |
| Medium duty truss | 290*290mm,300*300mm; 350*350mm 300*400mm; 400*400mm; 450*450mm; 400*600mm |
| Heavy duty truss | 520*760mm; 600*760mm; 600*1000mm |
| Main tube thickness | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| Vice tube thickness | 18*2mm; 20*2.5mm; 25*2.5mm |
| Brace tube thickness | 20*2mm; 25*2mm; 30*2mm |
| Length | 0.5m/1m/1.5m/2m...4m or custom size |
| Truss type | Spigot or bolt |
| Truss Shape | Ladder truss, triangular truss, square truss, arch truss, circle truss |
| Color | Silver or black, blue, green... |
| Usage | Concert, new product release, fashion show, booth stand construction |
| Delivery Time | 10 working days |
Applications
- Concerts and festivals: Build stages for outdoor events with various configurations and accessories
- Theatrical productions: Create sets, backdrops, and structures for plays and musicals
- Exhibitions and trade shows: Construct booths and displays for product showcases
- Corporate events: Build professional stages for product launches and conferences
- Sports events: Create structures for race lines, podiums, and scoreboards
Company Advantages
- TUV, SGS, CE Certified products
- 15 years experience in truss and stage manufacturing
- 35,000 m² workshop with strong production capacity
- Professional engineering team for project solutions
- Own aluminum profile production line for quality control
- Strict QC process with installation testing before delivery
Frequently Asked Questions
Why should I choose your company instead of other suppliers?
We offer certified products with 15 years of experience, large production capacity, professional engineering support, and strict quality control processes.
How do I know your quality? Do you support sample orders?
Our products have TUV/SGS/CE/ISO9001 certificates. We can provide samples for quality checking before batch orders.
Which kinds of payment does your company accept?
We accept T/T, Western Union, Trade Assurance, and L/C payments.
What is your products warranty time?
Our standard warranty is one year, covering any non-artificial damage with free replacements.
Can you do customized design?
Yes, our technical team provides perfect solutions for custom project requirements.
